When you manage structural steel erection for high-rise buildings, bridges, and complex industrial facilities, fastener reliability is non-negotiable. Every connection must perform precisely as engineered to transfer loads safely and maintain structural integrity. At LRKD Industries, we recognize the rigorous demands placed on structural engineers and steel contractors, which is why we provide meticulously engineered steel fasteners that meet strict industry standards.
Achieving a durable, high-strength structural connection goes beyond selecting the correct hardware. Proper installation of ASTM A325 structural bolts: whether specifying heavy hex configurations or tension-control (TC/F1852) variants: requires absolute adherence to proven pretensioning methods, precise calibration, and thorough inspection protocols. We understand the technical nuances of heavy construction, and we provide these best practices to ensure your structural steel connections achieve maximum performance and longevity.
Foundational Requirements for High-Strength Connections
Successful installation begins long before the wrench touches the steel. High-strength bolting requires a system of compatible components working in unison. When specifying A325 bolts for structural applications, you must ensure that every associated component matches project specifications and governing standards such as RCSC and AISC guidelines.
We recommend verifying that bolts are paired with compatible heavy hex nuts and hardened washers of matching strength. Never mix lower-grade nuts or unverified hardware with high-strength fasteners. Furthermore, correct thread engagement is vital. The end of the bolt should extend at least flush with, and preferably up to three threads beyond, the outer face of the nut to develop its full tensile capacity.
Holes must be drilled or punched to the specified dimensions: typically 1/16 inch larger than the nominal bolt diameter: to accommodate minor field adjustments. Members must be aligned and clamped so that bolts can be inserted freely without hammering. If you encounter resistance during insertion, inspect the hole alignment and steel fit-up immediately rather than forcing the fastener. For foundation embedments and anchor cages, remember to specify proper anchor bolt grades like ASTM F1554, keeping structural bolting distinct from foundation anchoring.
Achieving the Essential Snug-Tight Condition
Regardless of the final pretensioning method you select, establishing a proper snug-tight condition is the critical first step for every bolted joint in the structure. The RCSC specification defines snug-tight as the condition attained by the full effort of an ironworker using an ordinary spud wrench, or by the initial impacts of an impact wrench until the connected plies are brought into firm contact.
Bringing all bolts in the joint to a uniform snug-tight condition ensures that the steel plies are pulled tightly together before tensioning begins. When tightening complex joints, you must follow a systematic pattern. Always start from the most rigid part of the joint: typically the center or thickest connection plates: and work outward toward the free edges. For symmetrical joints, a star or cross tightening pattern ensures uniform load distribution and minimizes structural distortion.
Mastering Approved Pretensioning Methods
Governing specifications recognize four primary methods for achieving the required bolt pretension in structural steel connections. Selecting the correct method depends on project specifications, joint configuration, and available tooling.
The Turn-of-Nut Method
The turn-of-nut method achieves required pretension by rotating the nut (or bolt head) a specified angular distance past the snug-tight condition. After bringing all bolts to snug-tight, apply clear match marks across the nut, bolt thread, and steel surface. While restraining the bolt head from turning, rotate the nut by the required fraction of a turn based on bolt length and diameter. Shorter bolts typically require approximately one-third turn past snug, while longer bolts may require up to two-thirds turn or more. This method relies on controlled elongation, making it one of the most reliable and widely accepted procedures in steel construction.
The Calibrated Wrench Method
The calibrated wrench method utilizes a torque wrench adjusted to halt or signal when a pre-determined torque is reached. This torque value must be established through daily pre-installation verification testing using representative fastener assemblies in a tension calibrator. The wrench should be calibrated to induce a bolt tension approximately five percent above the minimum required specification. During installation, the nut must be in continuous motion while the calibrated wrench is applied.
Direct Tension Indicator (DTI) Washers
Direct tension indicators are specialized load-indicating washers featuring raised protrusions that compress as bolt tension increases. DTIs are installed beneath the non-turned element, while a hardened washer is placed under the turned nut. Tightening proceeds until the gap is compressed to a pre-determined measurement verified during pre-installation testing. This visual indicator provides an immediate, verifiable check on bolt tension across the entire joint.

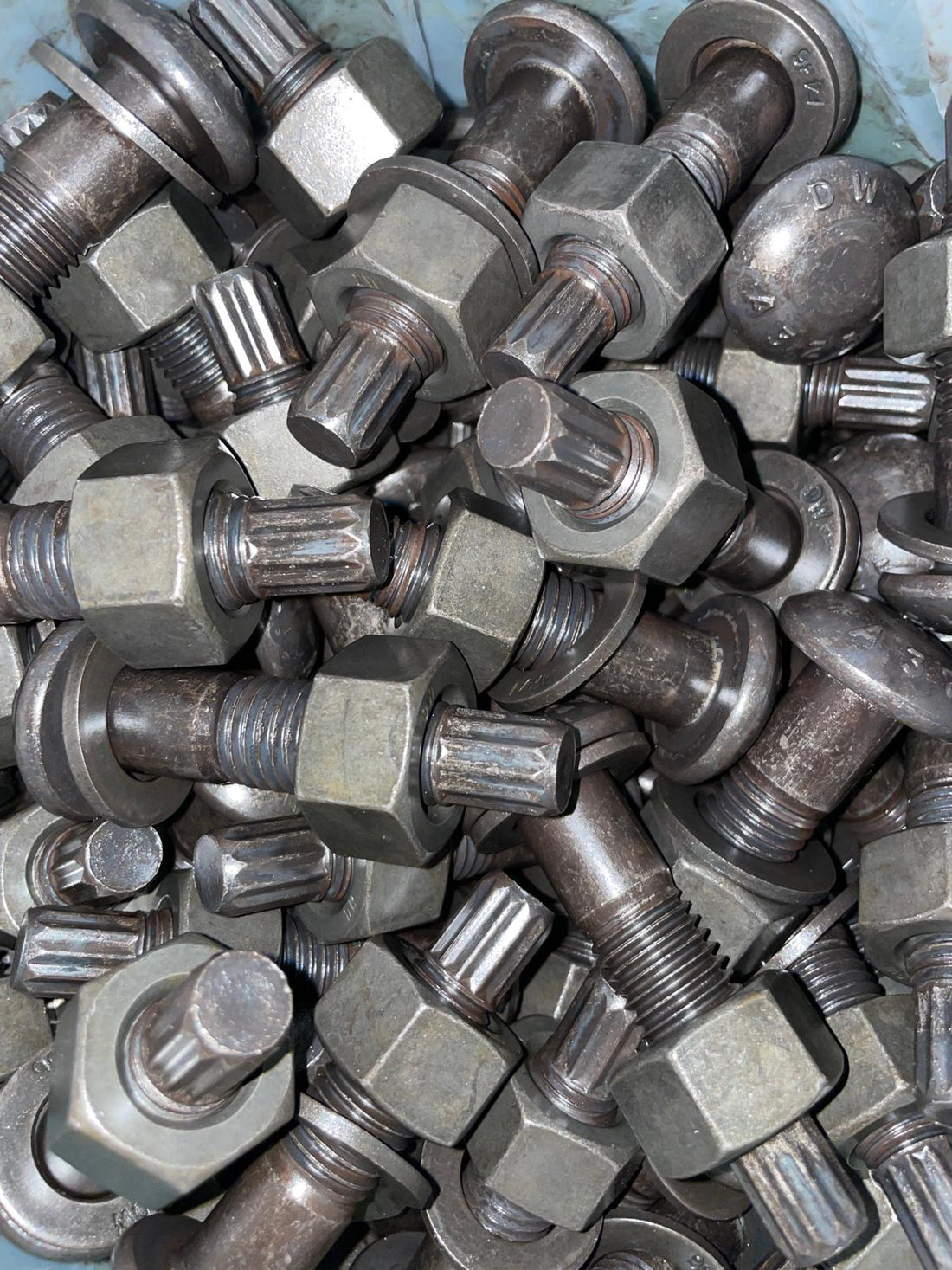

Tension-Control (TC) Bolt Assemblies
Tension-control bolts (ASTM F1852) offer a streamlined installation process utilizing specialized shear wrenches. These alternate design fasteners feature a splined end that shears off when the correct tension is achieved. TC bolts eliminate the need for calibrated torque wrenches or manual angle measurement, significantly increasing installation efficiency on bustling job sites.
Galvanized Versus Plain Finish Considerations
Surface finishes directly influence fastener behavior during installation and tensioning. Plain finish fasteners are typically lubricated by manufacturers to maintain consistent rotational capacity. When working with hot-dip galvanized A325 bolts, special care is required regarding wax or heavy lubrication. Galvanized assemblies must be tested on-site prior to installation to ensure that the heavy wax coating prevents galling while maintaining predictable torque-tension relationships.
Washer placement also varies by finish and method. Hardened washers are generally required under the turned element during machine tightening to prevent surface embedment and ensure consistent tension delivery. We supply comprehensive fastener packages that include all necessary matching components, ensuring your teams experience zero delays or compatibility issues on site.
Rigorous Inspection Protocols and Common Mistakes
Quality control is the final line of defense in structural steel erection. Inspection protocols must verify that pre-installation calibration has been documented, snug-tight conditions were achieved before final tightening, and all final pretensioning criteria were properly executed.
Common installation mistakes include failing to snug the joint prior to final turning, reusing high-strength bolts where prohibited by specification, neglecting to calibrate torque wrenches at the start of each work shift, and allowing inadequate thread stick-out. Inspectors must thoroughly check match marks for turn-of-nut installations, inspect DTI gaps with feeler gauges, and verify that all TC bolt splines have sheared off cleanly.
By establishing strict quality protocols and partnering with a reliable supplier, you eliminate guesswork and reinforce structural safety. At LRKD Industries, we provide prompt service, expert technical support, and premium steel fastening solutions tailored to commercial, residential, and industrial infrastructure projects.
Contact us today to discuss your next structural steel requirement, and let us support your operations with dependable, precision-engineered products.
